Nuclear Reactor Wall Charts

Nuclear Reactor Cutaway Schematic -- Creys-Malville Super Phénix


Super Phénix: Creys-Malville Nuclear Power Station, River Rhone (Sur le Rhone) Creys-Malville, Isere, France, Centrale Nucleaire Europeenne a Neutrons rapides SA. Wall chart insert, Nuclear Engineering International, June 1978



Nuclear Reactor Cutaway Schematic -- Snupps (Standardized Nuclear Unit Power Plant System)

Snupps (Standardized Nuclear Unit Power Plant System): Kansas City Power & Light Co., Burlington, Kansas. Wall chart insert, Nuclear Engineering International, November 1975



Nuclear Reactor Cutaway Schematic --Fulton

Fulton: Lancaster County, Pennsylvania, U.S.A., Philadelphia Electric Company. Wall chart insert, Nuclear Engineering International, August, 1974.



Nuclear Reactor Cutaway Schematic -- Candu 3

Candu 3: Mississauga, Ontario, Canada, CANDU Operations, Atomic Energy of Canada Ltd. Wall chart insert, Nuclear Engineering International, May 1990.

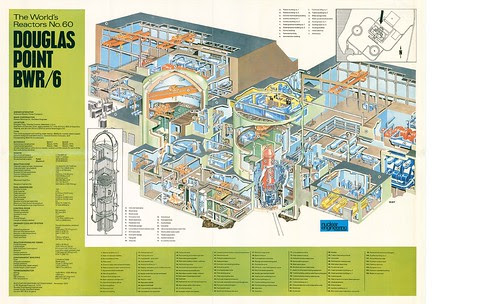

Nuclear Reactor Cutaway Schematic -- Douglas Point BWR.6

Douglas Point BWR/6: Potomac Electric Power Company, Douglas Point, Maryland. Wall Chart insert, Nuclear Engineering International, November 1973.



Nuclear Reactor Cutaway Schematic -- Grand Gulf

Grand Gulf: Middle South Energy Inc./Mississippi Power and Light, near Port Gibson, Mississippi. Wall chart insert, Nuclear Engineering International, September 1980.



Nuclear Reactor Cutaway Schematic -- Guangdong Nuclear Power Plant

Guangdong Nuclear Power Plant: Twin unit PWR station located at Daya Bay, People's Republic of China. Wall chart insert, Nuclear Engineering International, September 1987



Nuclear Reactor Cutaway Schematic -- Oskarshamn

Oskarshamn: Simpevarp, Sweden, Oskarshamnsverkets Kraftgrupp AB, OKG. Wall chart insert, Nuclear Engineering International, 1970.


[Click through for large and very large versions]


These images are derived from pdf files [UNM CSEL Nuclear Engineering Wall Chart Collection] hosted on New Mexico's Digital Collections portal for the Centennial Science and Engineering Library at the University of New Mexico on behalf of NEI. Something a bit different, to be sure.

In the same vein, I posted a link on Twitter the other day to the Flickr cutaway pool.

The Kevin Hulsey site can never be over-linked.

Addit: For the very keen, MIT has lecture notes and slides (I haven't looked) for the Integration of Reactor Design, Operations, and Safety course available. But maybe it's only tangential at best.

I would love to find more in the way of technical / industrial drawings and designs if anyone has a link to share?
